the Pressed part specialists

Process, Feasibility, Hemming simulation, Press optimisation, Tryout support, tool design, commissioning















Pressed part / Stamping Feasibility

For pressed part feasibility we use AutoForm software on every single project we do.

LEARN MORE



Hemming feasibility simulation

Feasibility study of a hemming process is very important to understand the required pre-hem flange angle and trim line development, cosmetic concerns and spring back prediction.

LEARN MORE



Technical consultancy, manufacturing and production optimisation.

 Curve engineering offer the ideal resource to ensure the very best in technical consultancy, manufacturing and production optimisation.

LEARN MORE



Tryout assistance

The best way to ensure that the lessons learnt during the simulation engineering phases are understood during tool try out is to have the simulation engineer present.

LEARN MORE

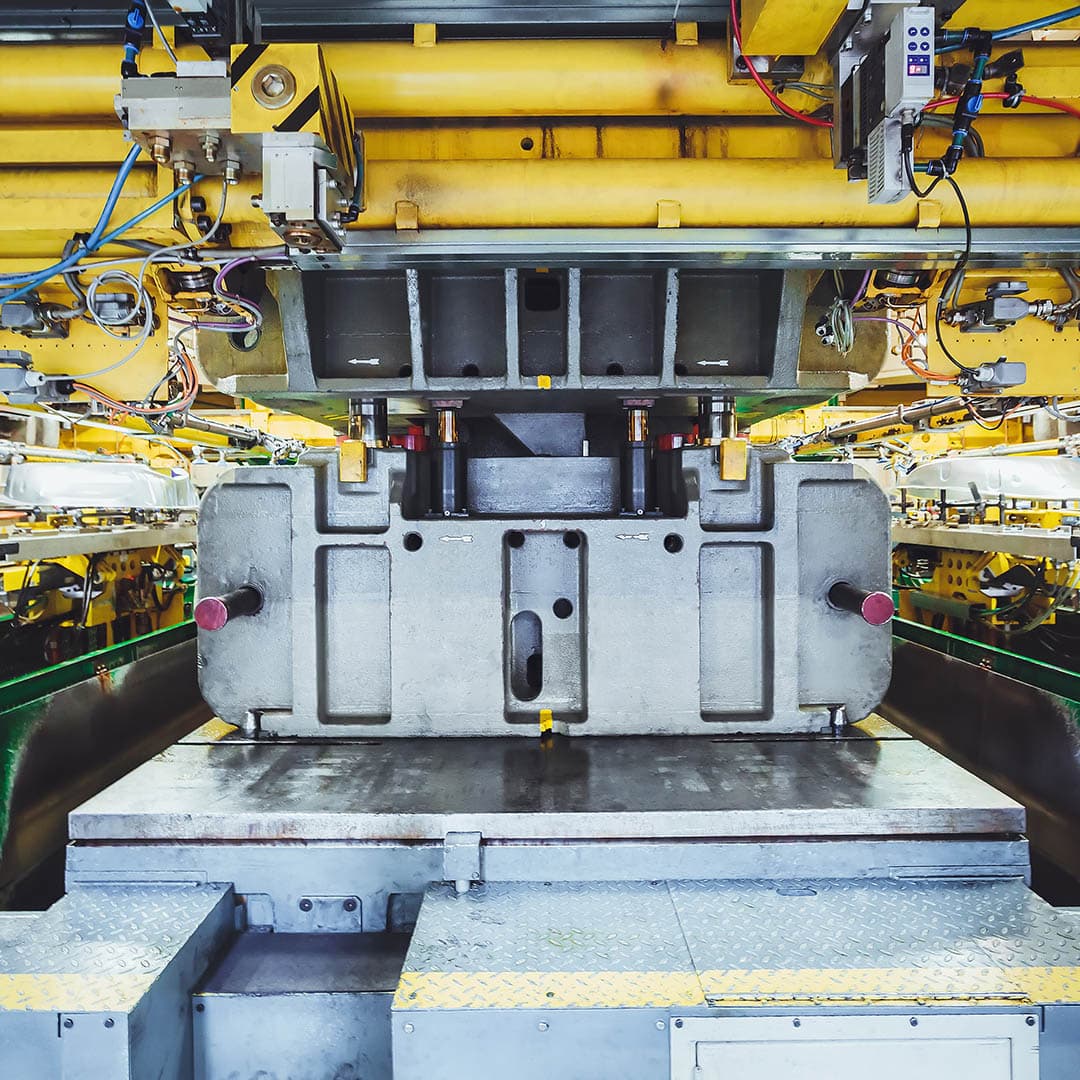

Tool / Die design

Our designers have extensive experience and knowledge of customer requirements from all over the globe . Using VISI, CATIA, NX we can support both large and small projects.

LEARN MORE



Die Commissioning

Our experienced team of tool makers and draw specialists are ready to assist you team or take a project from die delivery to part and die sign off from customer .

LEARN MORE

‘with over 30 years of metal pressings experience Curve offer a very technically proficient service.’

Our engineers including our founder owner Steve Hackett are all toolmaker trained. We treat stamping simulation as virtual try out rather than a simple reporting tool. Using this approach ensures the most robust process possible. If you have any issues with current production dies or newly delivered dies Curve can offer the very best in process optimisation ( line speed or scrap fall out )  and part quality / quality loop consultancy, all supported with in house stamping simulation services.

This is one of the things
we do best
pressed part feasibility

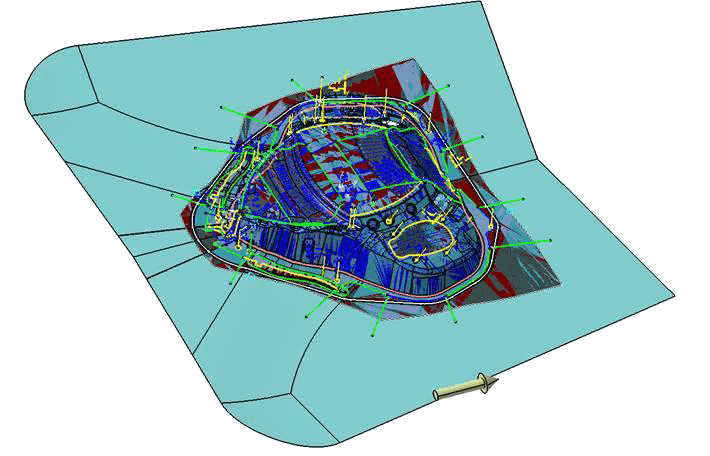

For pressed part feasibility we use AutoForm software on every single project we do from conception (feasibility data, using DieDesigner for blank-holder and addendum shape) to final validation of the die. What you run in your simulation must mimic, as closely as possible, what you are going to manufacture. That way, you get a robust process and correlation…. and there must always be correlation. The output we see from the virtual die (the digital master) must match what we see in reality.

Hemming Feasibility

Feasibility study of a hemming process is very important to understand the required pre-hem flange angle and trim line development. Curve engineering can provide this service with expert advice and predictions on assembled spring back and cosmetic issues created. We can offer early feasibility study without having an inner panel by generating a theoretical thickness or from full stamping output from auto form carrying over all the thinning and strains. Spring back prediction on the assembly and subsequent cosmetic concern predictions can also be made.


consultancy

Try-out and manufacturing

Drawing on the other 3 disciplines that curve engineering specialises in Curve engineering offer the ideal resource to ensure the very best in technical consultancy and manufacturing .

consultancy

Try-out and manufacturing

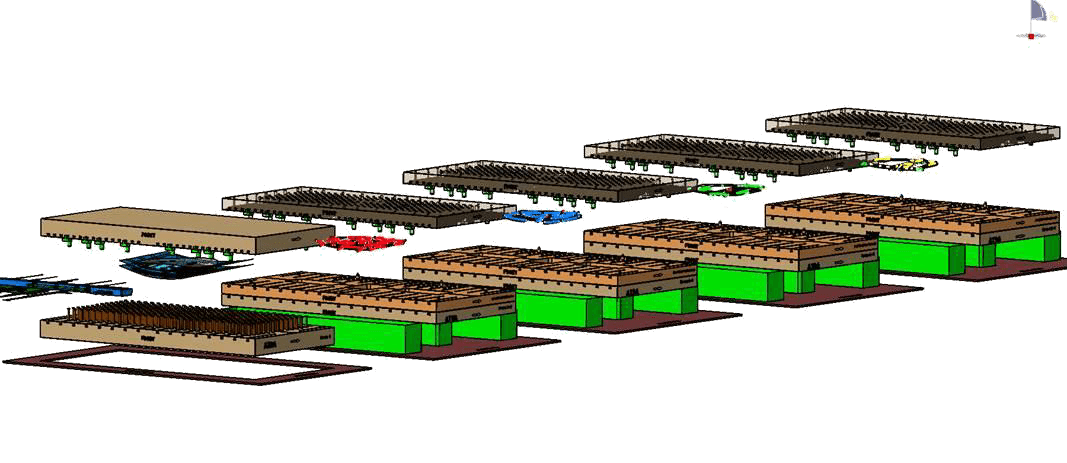

Utilising partners for design and manufacturing of progression, transfer, tandem, hand transfer dies, hemming anvils, jigs and fixtures for both measurement and assembly. If its full manufacture of dies, Production optimisation or die spotting Curve offer the solution.

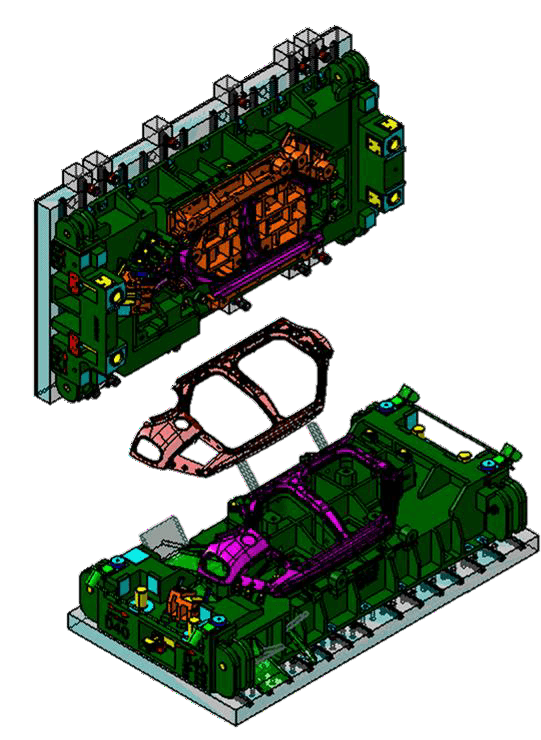

Tool / Die design

Our designers have extensive experience and knowledge of customer requirements from all over the globe . Using VISI, CATIA, NX we can support both large and small projects.











Tandem dies.









Progression dies.









Transfer dies.











Tandem dies.

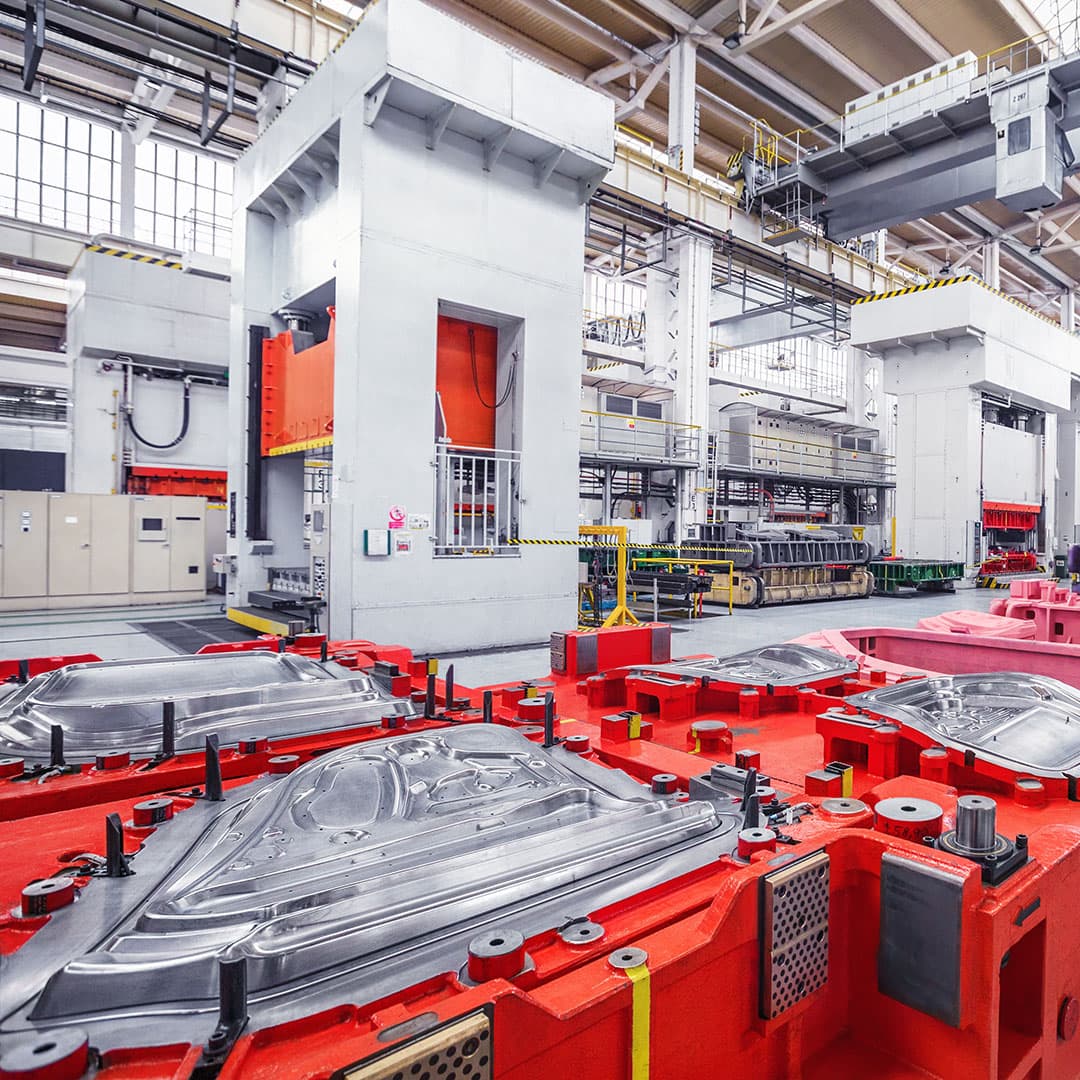

Commissioning

Enjoy the best
Commissioning support


 with engineering backup

Our experienced team of tool makers and draw specialists are ready to assist you team or take a project from die deslivery to part and die sign off from customer .Our experienced team of tool makers and draw specialists are ready to assist you team or take a project from die deslivery to part and die sign off from customer . We can support in U.K or overseas .




Enginering support

Our commissioning toolmakers have the backup of  our engineering office to check any work with simulation prior to any irreversible work



Experience

Our toolmakers and draw specialists are experienced in conventional and skin panels in aluminium and steel , tandem tooling , transfer tooling and blanking dies













Contact us

If you would like to contact us regarding any of our services please send us an email using the form below or visit us at

           Suite 5, Hagley business centre, HagleyDY99JW   Tel: +44 1562 546375
